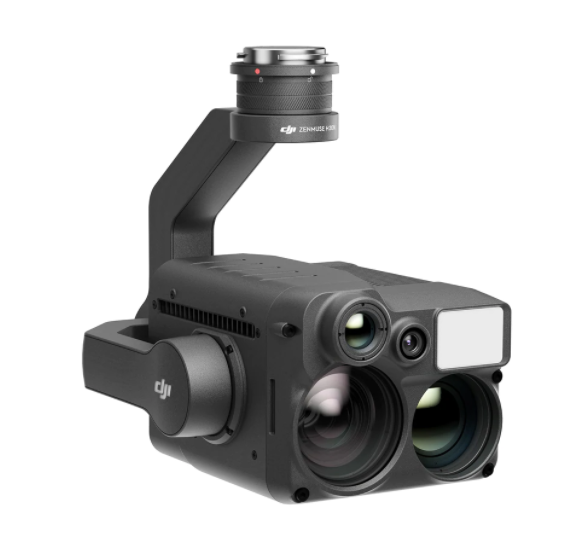

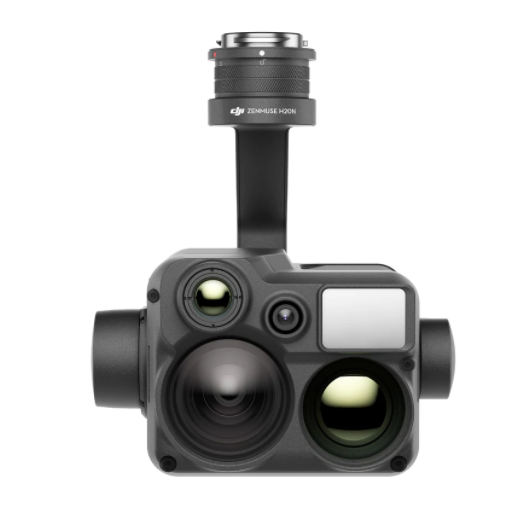

DJI Zenmuse H20N

DJI Zenmuse H20N - For Pre-Order - Drone Safe Store

Price upon request please contact tom@dronesaferegister.org.uk or telephone via 01243 882440

"N" for Night Vision

Starlight sensors1 are built into the Zenmuse H20N's zoom and wide-angle cameras. When you combine this with twin zoom thermal cameras and a laser rangefinder, you've got a versatile hybrid payload that can handle any situation.

Features

• Starlight Night Vision
• 640×512 Dual Thermal Cameras
  2×, 8× Optical Zoom
• 20× Hybrid Optical Zoom
• Synchronized Split-screen Zoom
• Intelligent Night Scene Enhancement
• IP44 Rating

Sensors Upgraded Across Multiple Dimensions

Infrared Zoom

• Dual Thermal Cameras
• Resolution: 640×512
• 2x Zoom (Equivalent Focal Length: 53 mm)
• 8x Zoom (Equivalent Focal Length: 196 mm)

See the Big Picture

• Night Vision Wide Camera
• Starlight Sensor: 2MP
• Stronger Low-Light Performance

Pierce Through the Veil

• Night Vision Zoom Camera
• Starlight Sensor: 4MP
• 20× Optical Zoom, 128× Max Zoom
• Low-Light Details

Precise Distance Data

• Laser Rangefinder
• Range: 3 m to 1200 m
• Accuracy: ± (0.2 m + D×0.15%)

Thermal and Starlight Vision to Elevate Your Operations

See Through the Night

The zoom and wide-angle cameras are equipped with starlight sensors that are tailor-made for low-light environments.

Infrared Zoom

Two thermal cameras give 2 and 8 zoom, respectively, for a total of 32 zoom. After zooming in, locate hotspots and examine them in greater depth.

Synchronized Split-screen Zoom

The H20N night vision camera provides synchronised zoom between thermal and starlight cameras. Both photos can be scaled at the same time. This doubles efficiency and makes side-by-side comparisons easier.

More Intelligent Features

Thermal Features

Colour Palettes
Adjust the colors applied to the thermal data based on the mission requirements.

Isotherms
Visualize a specific band of temperatures to highlight your targets.

Temp. Alarm
Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.

Gain Modes
To alter the temperature range captured, modify the gain modes: Low Gain Mode covers a larger temperature range but is more sensitive to temperature differences; High Gain Mode covers a smaller temperature range but is more sensitive to temperature variations.

R-JPEG Images
The images captured by the Zenmuse H20N are R-JPEG files with temperature information encoded. You can monitor temperature and change parameters like Emissivity and Reflected Temp by importing these photos into the DJI Thermal Analysis Tool.
