DJI Dock 3 With DJI Matrice 4D
Automated precision mapping without a crew on site. Pairs the vehicle-mountable DJI Dock 3 with the Matrice 4D, whose 4/3 CMOS mapping camera and RTK positioning make this the configuration built for surveying, construction progress monitoring, and repeatable site capture rather than thermal inspection.
What This Bundle Includes
Unlike the Dock 3 (Dock Only) listing, this package includes both the docking station and the aircraft, ready to deploy as a complete system:
- DJI Dock 3 docking station, vehicle-mountable or fixed installation.
- DJI Matrice 4D aircraft with 4/3 CMOS mapping camera and integrated RTK.
- RTK Network Subscription (30 Days Unlimited) worth £180.
Why the 4D Rather Than the 4TD
Both aircraft share the same IP55-rated, dock-ready airframe. The difference is the payload and therefore the mission:
| Matrice 4D (this bundle) | Matrice 4TD | |
|---|---|---|
| Wide camera | 4/3 CMOS, 20MP, mechanical shutter | 48MP, f/1.7 |
| Thermal camera | Not fitted | 640×512 |
| Built for | Surveying, mapping, construction monitoring | Public safety, SAR, thermal inspection |
| Price | £15,015 | £16,795 |
If your deployment needs thermal, the Dock 3 with Matrice 4TD is the right configuration. For mapping and survey work, the 4D does the job for £1,780 less.

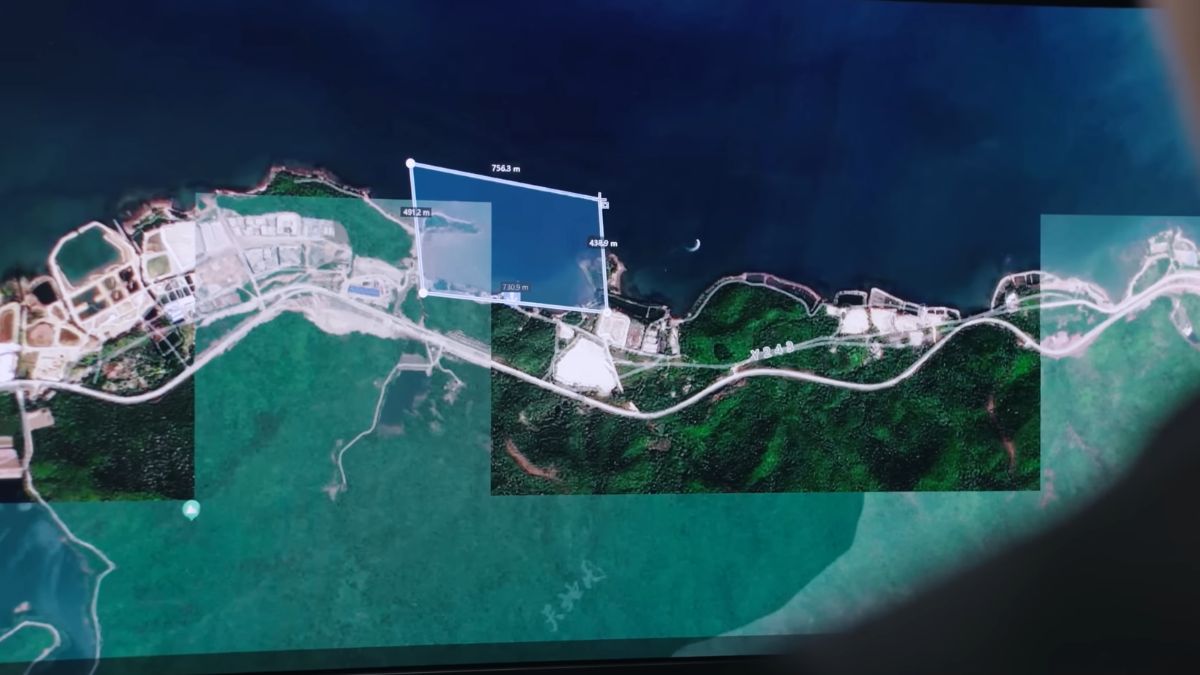

Repeatable Survey, Automatically
The 4D's 4/3 CMOS wide camera with mechanical shutter is built for photogrammetry, avoiding the rolling shutter distortion that undermines accuracy at mapping speeds. Paired with integrated RTK, that means centimetre-level positioning on every automated sortie. Run the same route weekly from the dock and you get a genuinely comparable dataset each time, which is what makes automated progress monitoring work rather than just producing pretty imagery.
Three-Camera System
- 20MP wide camera (4/3 CMOS, 24mm equivalent, mechanical shutter) for mapping and general capture.
- 48MP medium tele camera (1/1.3-inch, 70mm equivalent) for closer structural detail from a safe distance.
- 48MP tele camera (1/1.5-inch, 168mm equivalent) for reading fine detail at range.
- Laser rangefinder reaching 1800m for on-site distance and area measurement.
AI Recognition Without an Operator
The onboard AI model identifies vehicles, vessels, and people automatically during flight. On an unattended dock mission with nobody watching the feed, that turns a recorded video into an actionable alert, which is much of the reason a dock deployment pays for itself.
First-Ever Vehicle-Mounted Dock
The Dock 3 is DJI's first dock built for mobile, vehicle-mounted operation, with in-transit charging and data transfer supported. For surveyors covering multiple sites or long linear assets, the launch point moves with the team rather than dictating where they can work. Fixed installation is equally supported, on a concrete base, steel frame, load-bearing frame, or direct ground mount.
Continuous Operations With Dual Docks
Two docks at one site let an aircraft rotate between them, so the next mission starts while the previous battery charges. With cloud scheduling in DJI FlightHub 2, that supports uninterrupted coverage without on-site personnel.
Rapid Turnaround
Quick takeoff has the aircraft airborne roughly ten seconds after the cover opens. Charging runs from 15% to 95% in 27 minutes at 25°C, which sets the practical minimum interval between consecutive sorties.
Built for Extreme Conditions
The dock is rated IP56 and operates from -30°C to 50°C, with compressor-based air conditioning that actively heats and cools rather than simply venting. The 4D is IP55-rated with anti-icing propellers, and both tolerate winds up to 12 m/s.
Transmission and Extended Range
O4+ Enterprise transmission runs through nine built-in antennas in a 2T4R configuration. Under CE regulations, which apply in the UK, maximum transmission distance is 12km (25km under FCC). For fixed sites needing greater reach, the D-RTK 3 Relay Fixed Deployment Version extends operational range and improves takeoff and landing reliability in high-rise or remote environments.
Onboard Monitoring and Security
Integrated sensors track wind speed, rainfall, ambient temperature, water immersion, and in-cabin conditions, feeding environmental data into the launch decision. Dual 1920×1080 cameras, one internal and one external, cover 151° with auxiliary white light for night visibility.
Centimetre-Level Positioning
The built-in RTK module receives GPS, BeiDou, GLONASS, Galileo, and QZSS simultaneously, delivering 1cm+1ppm horizontal and 2cm+1ppm vertical accuracy (RMS), with cloud-based calibration through DJI FlightHub 2.
Centimetre-Level Positioning
The built-in RTK module receives GPS, BeiDou, GLONASS, Galileo, and QZSS simultaneously, delivering 1cm+1ppm horizontal and 2cm+1ppm vertical accuracy (RMS), with cloud-based calibration through DJI FlightHub 2.
Frequently Asked Questions
Specifications
Dock 3
| Spec | Value |
|---|---|
| Total Weight | 55kg (without aircraft) |
| Dimensions (cover open) | 1760 × 745 × 485mm |
| Dimensions (cover closed) | 640 × 745 × 770mm |
| Power Input | 100-240V AC, 50/60Hz |
| Max Power | 800W |
| Operating Temperature | -30°C to 50°C |
| Ingress Protection | IP56 |
| Charging Time | 27 minutes (15% to 95% at 25°C) |
| Backup Battery Life | Over 4 hours |
| Transmission | O4+ Enterprise, 12km (CE), 25km (FCC) |
| RTK Accuracy | 1cm+1ppm horizontal, 2cm+1ppm vertical (RMS) |
Matrice 4D
| Spec | Value |
|---|---|
| Wide Camera | 4/3 CMOS, 20MP, 24mm equivalent, mechanical shutter |
| Medium Tele Camera | 1/1.3-inch CMOS, 48MP, 70mm equivalent |
| Tele Camera | 1/1.5-inch CMOS, 48MP, 168mm equivalent |
| Laser Rangefinder | Up to 1800m |
| Ingress Protection | IP55 |
| Max Wind Resistance | 12 m/s |
Does this include the aircraft?
Yes. This bundle includes both the Dock 3 and the Matrice 4D. The Dock Only listing covers the docking station alone at a lower price if you already hold a compatible aircraft.
Should I choose the 4D or the 4TD bundle?
The 4D carries a 4/3 CMOS mapping camera built for surveying, construction monitoring, and precision capture. The 4TD swaps that for a 640×512 thermal sensor and NIR light, aimed at public safety and thermal inspection. The dock and airframe are identical, so the choice is purely about mission type.
Can the aircraft be flown manually as well as from the dock?
Yes, with a DJI RC Plus 2 Enterprise controller, sold separately unless already held. The aircraft isn't locked to dock operation.
What's the actual transmission range in the UK?
12km under CE regulations. The 25km figure quoted widely is the FCC maximum, which applies in the United States rather than here.
What happens during a power cut?
The 12Ah backup battery sustains dock operation for over four hours, though aircraft charging, air conditioning, cover heating, and wind gauge heating are all suspended while on backup power.
Do I need a service plan?
Yes. DJI requires the Dock 3 to be supplied with a service plan. Our team will talk through Repair Plus and Protect Plus options and confirm the right term.
What warranty comes with the Matrice 4D?
| Component | Warranty |
|---|---|
| Main Controller | 24 Months |
| Gimbal and Camera | 24 Months |
| Lens | 24 Months and less than 200,000 Shutter Uses |
| Vision Positioning Module | 24 Months |
| Propulsion System (Excl. Propellers) | 24 Months |
| RTK Module | 24 Months |
| Matrice 4 Obstacle Sensing Module | 24 Months |
| Internal Charging Module | 24 Months |
| DJI Cellular Dongle 2 | 24 Months |
| FTS Module | 24 Months |
| Remote Controller | 24 Months |
| Battery | 12 months, and less than 400 charge cycles, with a storage time of less than 120 days at ≥90% battery capacity |
| Charger | 24 Months |
| Battery Charging Hub | 24 Months |
| Speaker | 24 Months |
| Spot Light | 24 Months |
| Carrying Case | 6 Months |
| Propellers | No Warranty |
| Other Accessories | No Warranty |
Can I get this on finance?
Ltd companies can access iwocaPay financing, and individual buyers can use Klarna or Clearpay at checkout.
