DJI Zenmuse H30
The DJI Zenmuse H30 is a flagship multi-sensor payload that combines four modules: a laser rangefinder, NIR auxiliary light, and wide and zoom cameras with night vision.
It can be utilised with the DJI M350 RTK and DI M300 RTK (with DJI RC Plus) and is a full-day, all-weather payload.
H30 sports a 48MP wide-angle camera as well as a zoom lens with an optical zoom of 34x and a maximum digital zoom of 400x. Night Scene Mode is supported by both of these cameras.
In addition, the H30 has an NIR auxiliary light and a laser rangefinder with a 3,000-meter measurement range.
Key Features
Better Visual Zoom Camera: 48MP effective pixels with optimised stabilisation for telephoto videos, featuring a 400x digital zoom and a 34x optical zoom.
Improved range of 3–3000 m with 0.2 m under 500 m and 1 m over 500 m accuracy is achieved with the Laser Rangefinder.
NIR Auxiliary light: Using NIR bands, illuminate dark areas up to 100 metres away. These bands use combinations of absorption bands and their overtones to detect infrared vibrations, which are invisible to humans, up to a distance of 850 metres.
Detect Details: Compared to the H20, the H30 exhibits a better observation effect on target details at a distance of 700 metres.

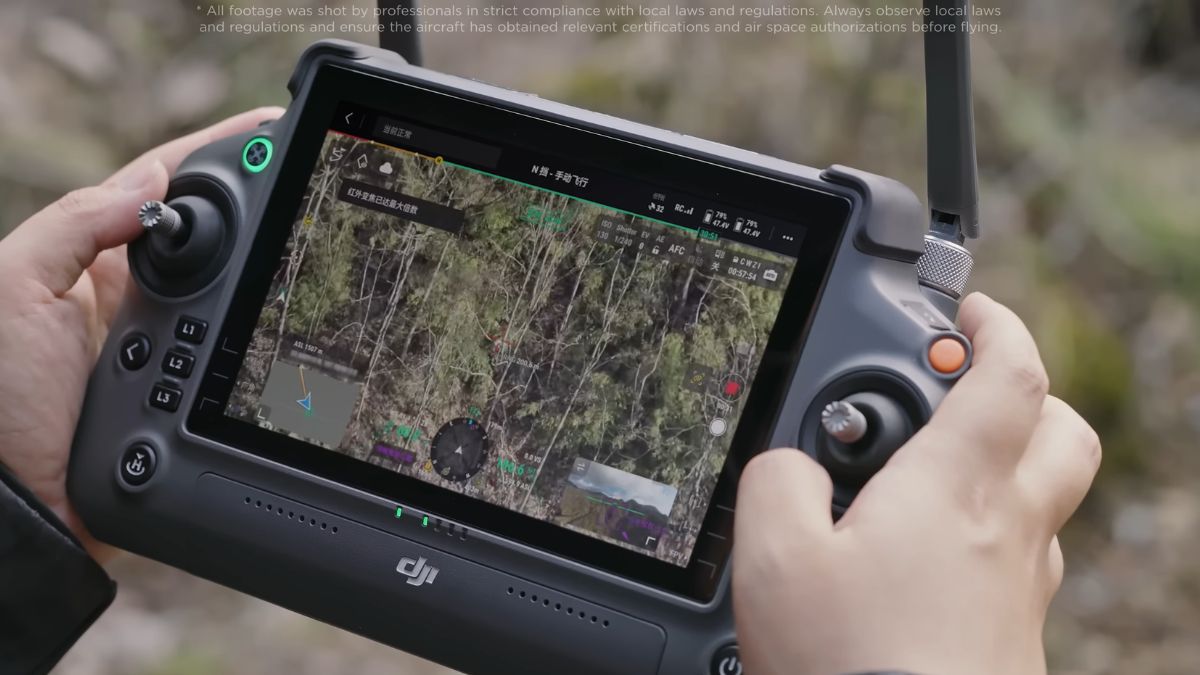

Multi-Touch Gesture: The DJI RC Plus Controller's touchscreen settings make it simple to operate the H30's camera features, allowing for simple user navigation to reach its advanced camera settings.

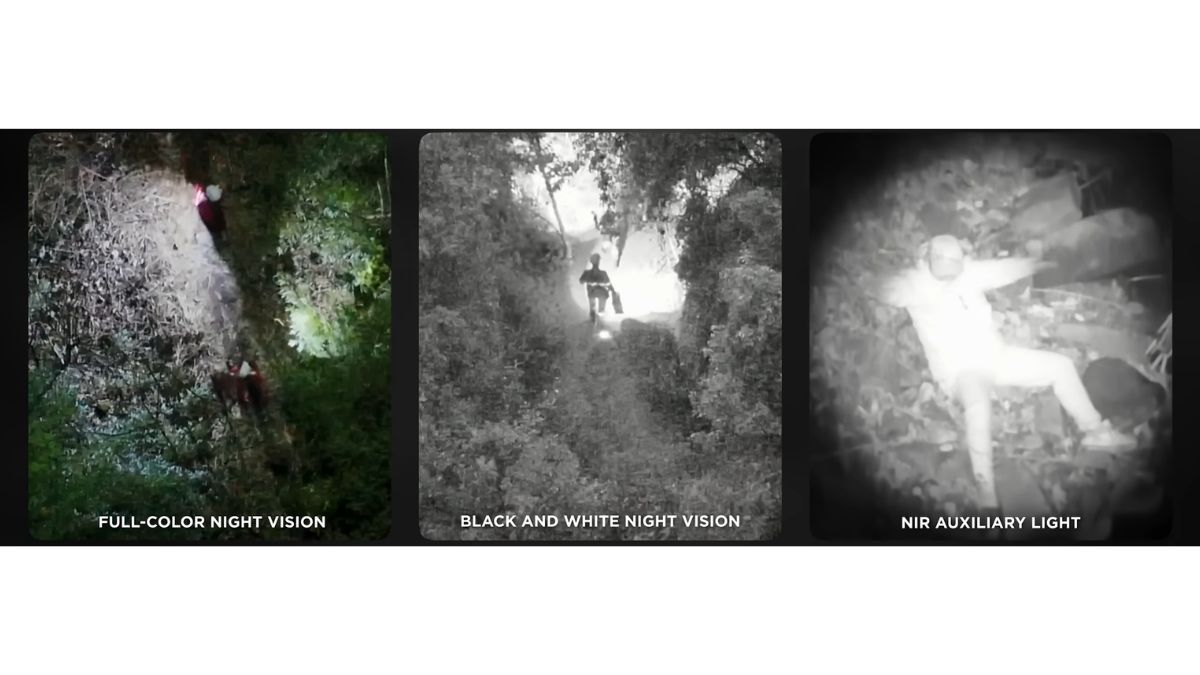

Night Vision: To obtain greater clarity and accuracy at night and in dimly lit areas, activate night mode using the H30 full-color or black-and-white options.
![DJI Zenmuse H30](https://drone-safe-store.s3.eu-west-2.amazonaws.com/untitled-design-82-1715868576V8w3N.png)
![DJI Zenmuse H30](https://drone-safe-store.s3.eu-west-2.amazonaws.com/untitled-design-83-1715868617gHYX0.png)
With its zoom camera, the H30 offers three different photography modes that are all intended to help you take precise, excellent photos and videos.
Click and Aim: Using the DJI RC Plus, you can easily control the gimbal by double-clicking the area of interest you want to highlight. The camera will then move the gimbal to centre the image.
One-Finger Swap: Press and hold the screen until the cursor appears, then slide one finger across the screen to change the gimbal angle.
Slide With Three Fingers: To hide every setting in the interface and concentrate only on watching the live feed from the camera, just swipe down with three fingers.
Zoom and Visual H30 Cameras
A 1/1.8-inch CMOS zoom camera with 40MP effective pixels. allows for the use of the night scene mode.
Excellent Zoom Performance: 400x digital zoom and 34x maximum optical zoom. enhanced stabilisation in telephoto video, faster focusing speed, and preserved clarity when zooming.
Superior Object Detection from a Distance: When comparing the H30's performance to that of the H20 Series, the H30 exhibits a better observation effect on target details at 700 metres.
48-megapixel 1/1.3-inch CMOS wide angle camera. 24 mm is the equivalent focal length.
Recording: Get resolutions of 4K and 1K. Recording continuously for up to two hours.
Smart Capture: Prior to taking an image, the camera can evaluate the dynamic range and light intensity thanks to Smart Capture Mode.
Laser Rangefinder: An improved laser rangefinder with a maximum measuring distance of 3,000 metres. coordinates for latitude, longitude, and altitude displayed in real time.
![DJI Zenmuse H30](https://drone-safe-store.s3.eu-west-2.amazonaws.com/untitled-design-84-1715869059DxgwW.png)
