DJI Dock 2 With DJI Matrice 3D
Complete survey drone-in-a-box solution: dock and aircraft included.
Pairs the DJI Dock 2 with the Matrice 3D for automated, unattended mapping and survey work. A 4/3 CMOS sensor with mechanical shutter makes the M3D built specifically for high-precision drone mapping, without the distortion a rolling shutter introduces at speed.
What This Bundle Includes
Unlike the Dock 2 (Dock Only) listing, this package includes both the docking station and the aircraft, ready to deploy as a complete system:
- DJI Dock 2 docking station.
- DJI Matrice 3D aircraft with 4/3 CMOS mechanical shutter mapping camera.
Built for Mapping
The M3D's mechanical shutter avoids the rolling shutter distortion that undermines photogrammetric accuracy at mapping speed, which is what makes automated construction progress monitoring and earthwork measurement genuinely repeatable from one flight to the next. If your work needs thermal detection instead, the Matrice 3TD bundle is the equivalent for public safety and inspection work. The dock and airframe are shared, only the camera differs.
Automated Site Monitoring

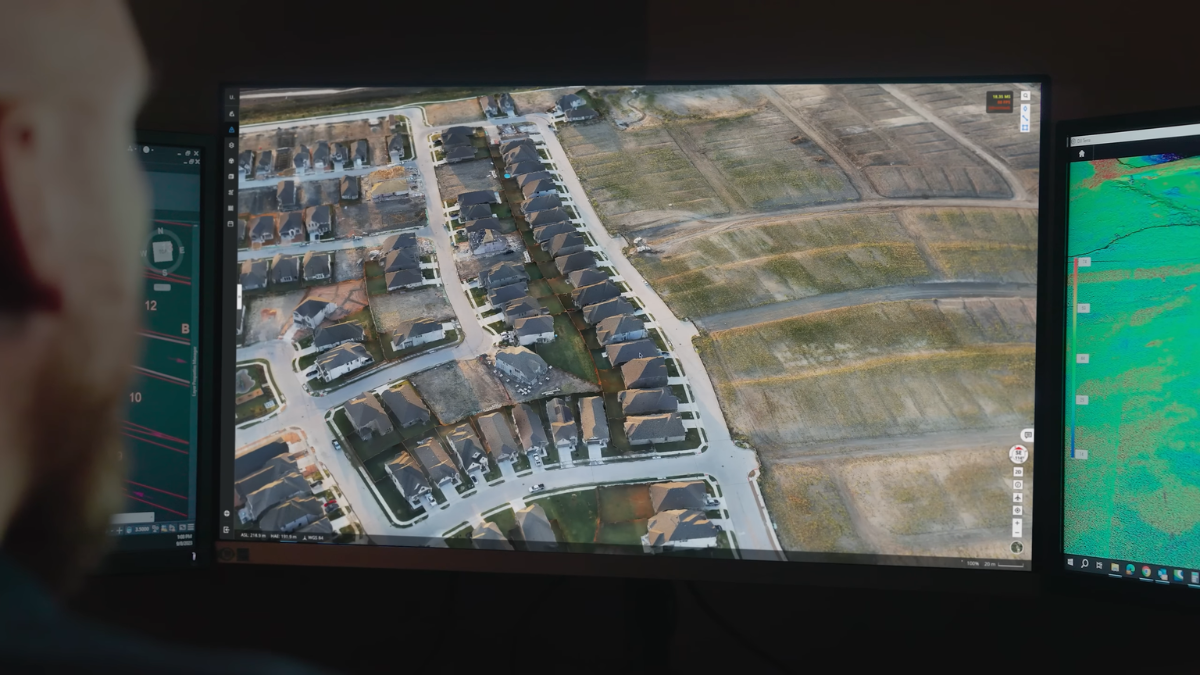

Run the same mapping route on a schedule from the dock, and you get a genuinely comparable dataset each time, which is what makes automated progress tracking possible rather than just producing one-off aerial photos. Common uses include construction earthwork measurement, quarry stockpile volume tracking, and repeat land survey.
Dock 2 Platform
| Spec | Value |
|---|---|
| Deployment | Two people, 75% smaller and 68% lighter than the original Dock |
| Ingress protection | IP55 |
| Max operating radius | 10km |
| Backup power duration | Over 5 hours |
| Typical maintenance interval | 6 months |
| RTK antennas | 2, integrated |
| Monitoring cameras | 2 (internal and external fisheye) |
| Cloud platform | DJI FlightHub 2 |
| Payload support | Third-party compatible |
The dock assesses GNSS signal strength and scans the surrounding area automatically before the first flight, cutting site selection from around five hours down to twelve minutes or less. Takeoff, including a full propeller inspection, completes within 45 seconds thanks to two integrated RTK antennas, and an internal backup battery keeps the dock running for over five hours during a power cut, enough time for the aircraft to land safely.
Frequently Asked Questions
Does this include the aircraft?
Yes. This bundle includes both the Dock 2 and the Matrice 3D. The Dock Only listing covers the docking station alone at a lower price if you already hold a compatible aircraft.
Should I choose the M3D or M3TD bundle?
The M3D carries a mapping-specific mechanical shutter camera, built for survey and progress monitoring work. The M3TD swaps that for a thermal sensor, aimed at public safety and inspection. The dock and airframe are identical, so the choice is purely about mission type.
What happens during a power cut?
The internal backup battery sustains dock operation for over five hours, enough time for the aircraft to complete its mission and return safely.
How often does it need servicing?
Roughly every six months under typical conditions.
Can it run third-party payloads or software?
Yes, third-party payload and software support is built in alongside the standard DJI configuration.
What warranty comes with the Matrice 3D?
As an official DJI Enterprise A-Rank retailer, we offer 24 months warranty. DJI hasn't published a component-by-component breakdown for the Dock 2 and Matrice 3D combination, so our team can confirm specific coverage before you buy.
Can I get this on finance?
Ltd companies can access iwocaPay financing, and individual buyers can use Klarna or Clearpay at checkout.
Why Buy From Drone Safe Store
Drone Safe Store is a DJI Enterprise A-Rank retailer and a YPO approved supplier for public sector procurement. A dock deployment involves siting, power, and connectivity decisions before anything ships, so our team works through the full configuration with you first, and our in-house engineers handle servicing afterwards.
