DJI Zenmuse L1 Camera Body
SKU: 270605 Material Code: 270605 Brand: DJI
Includes VAT · pay in 3 from £3,866.67 with Klarna
- DJI's 1st LiDAR Camera
- Use with DJI M300 Matrice
- 240,000 effective points
- Use DJI Terra for post-processing
- Buy With Complete Confidence
- Highest Rated U.K DJI Enterprise Dealer
Free Next Working Day Delivery
Order within 11 hrs 41 mins for delivery by Thursday, 13th August (UK Mainland)
Free collection from our Chichester Experience Centre
Pay Safely & Securely With
VIP Membership
Join the club & save £££ - Thousands saved over the years!

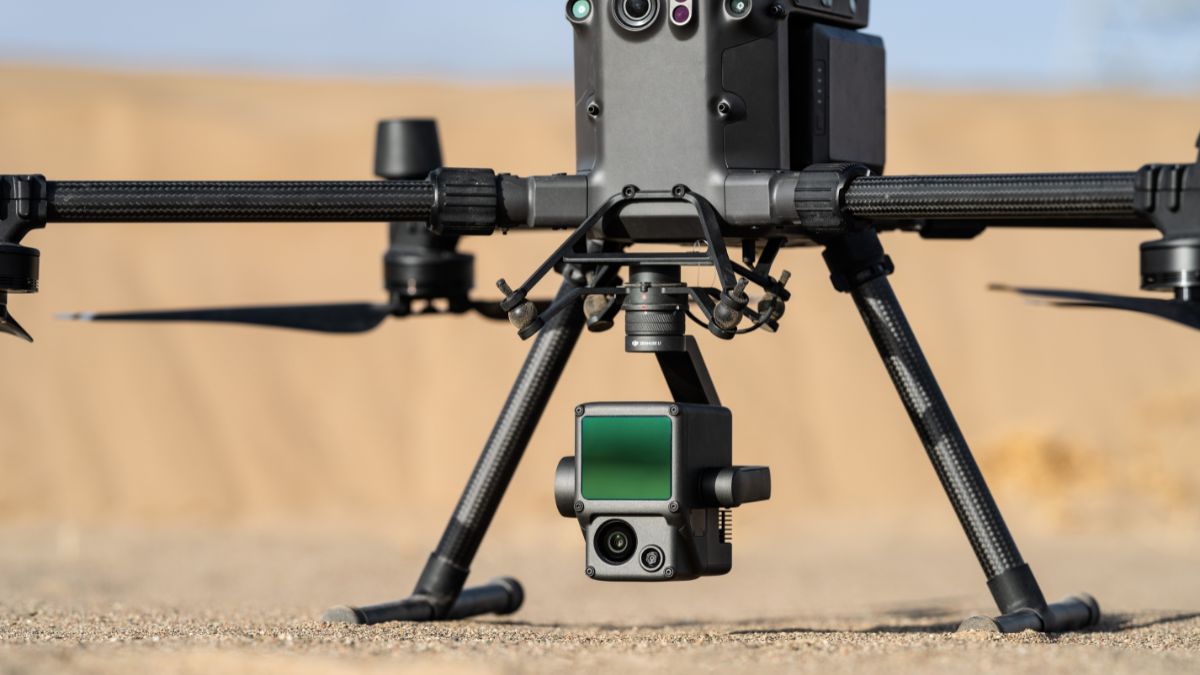

DJI Zenmuse L1
DJI's first LiDAR payload, combining a Livox LiDAR module, a high-accuracy IMU, and a 20MP 1-inch CMOS mapping camera on a 3-axis stabilised gimbal. Captures real-time 3D point cloud data in a single pass, day or night, for survey, forestry, and asset inspection work.
Why the L1
- Capture 240,000 points per second on a single return, building dense point clouds without repeated passes over the same ground.
- Work through the night, since LiDAR generates its own light source rather than depending on ambient conditions like a photogrammetry payload does.
- See the point cloud as you fly with Point Cloud LiveView, confirming coverage on-site rather than discovering a gap back at the office.

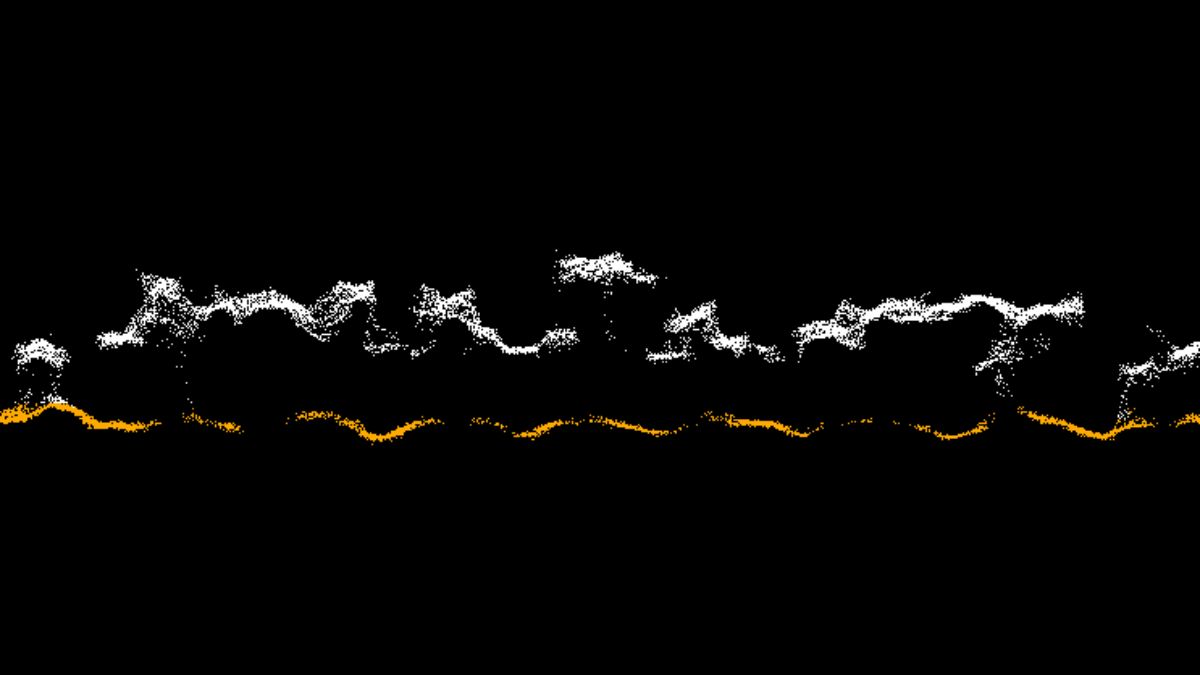

- Penetrate vegetation using multiple-return capability, reaching ground level under canopy where photogrammetry cannot.
- Colourise in real time using the built-in RGB camera, producing a true-colour point cloud from one flight.
LiDAR and Camera in One Payload
The Livox LiDAR module handles the measurement, while the 20MP 1-inch CMOS camera with mechanical shutter captures the visual data used to colourise the cloud. The high-accuracy IMU ties the two together, keeping positional data aligned throughout the flight so post-processing runs cleanly rather than needing manual correction.
Built for Complex Structures
Because LiDAR measures directly rather than inferring geometry from overlapping images, the L1 handles subjects that defeat photogrammetry: power lines, lattice towers, dense woodland, and narrow structural detail. Paired with the Matrice 350 RTK and DJI Terra, it produces reconstructed models accurate enough for survey deliverables.
Weatherproof and Field-Ready
Rated IP54 for dust and light rain resistance. Detachable via DJI SKYPORT mounting for quick payload changes between missions.
Frequently Asked Questions
What's in the Box
1 x Gimbal and Camera
1 x MicroSD Card (64GB)
1 x Storage Case
1 x Lens Cleaning Cloth
Does the L1 work with the Matrice 400?
No. The L1 supports the Matrice 350 RTK and Matrice 300 RTK only. For a Matrice 400-compatible LiDAR payload, please see the Zenmuse L2 or Zenmuse L3.
Should I buy the L1 or the L2?
For most buyers, the L2. It improves accuracy, extends detection range, removes the L1's warm-up period, and produces a finer point cloud, while working with the Matrice 400 as well as the 350 and 300 RTK. The L1 remains a capable payload for operators already standardised on it, or where an existing workflow depends on L1 data. Our team can talk through which genuinely suits your situation.
Do I need DJI Terra to process L1 data?
DJI Terra is the intended pipeline for generating point clouds and 3D models. The L1 also records GNSS observation data and image logs for PPK post-processing in third-party software.
Can the L1 be used at night?
Yes. LiDAR generates its own laser pulses rather than relying on ambient light, so measurement works in full darkness. The RGB colourisation will be limited without light, so plan accordingly if true-colour output matters.
What warranty comes with the L1?
| Component | Warranty |
|---|---|
| Gimbal | 24 Months |
| Livox Avia | 24 Months |
| Camera | 24 Months |
| High Precision IMU Module | 24 Months |
| Storage Case | 6 Months |
| Other Accessories | No Warranty |
Can I get this on finance?
Ltd companies can access iwocaPay financing, and individual buyers can use Klarna or Clearpay at checkout.
Specifications
General
0° to 50° C (32° to 122° F) (when using RGB mapping camera)
System Performance
190 m @ 10% reflectivity, 100 klx
Multiple return: max. 480,000 pts/s
Vertical: 5 cm @ 50 m
Lidar
Repetitive scanning pattern: 70.4° (horizontal) × 4.5° (vertical)
Inertial Navigation System
Auxiliary Positioning Vision Sensor
RGB Mapping Camera
Electronic Shutter Speed: 1/8000 - 8 s
Photo: 100 - 3200 (Auto), 100 - 12800 (Manual)
Gimbal
Data Storage
SanDisk Extreme 64GB UHS-I Speed Grade 3
SanDisk Extreme 32GB UHS-I Speed Grade 3
SanDisk Extreme 16GB UHS-I Speed Grade 3
Lexar 1066x 128GB U3
Samsung EVO Plus 128GB
Post-processing Software
Point cloud format: PNTS/LAS/PLY/PCD/S3MB format
