DJI Zenmuse H30T Drone Payload
SKU: CP.EN.00000529.01 Material Code: DJIEZENH30T Brand: DJI
Includes VAT · pay in 3 from £3,520.00 with Klarna
- 48MP Wide camera
- 34x Optical/400x Digital Zoom Camera
- 1280 x 1024 Infrared Sensor
- Laser rangefinder with a 3,000m range
- Upgraded Thermal Sensor
- Improved Visual Zoom
Free Next Working Day Delivery
Order within 12 hrs 43 mins for delivery by Wednesday, 12th August (UK Mainland)
Free collection from our Chichester Experience Centre
Included with the DJI Zenmuse H30T Drone Payload
Over £230.00 worth of extras included!
-
Drone Safe Register Professional - 1 Year
RRP £238.79
Pay Safely & Securely With
VIP Membership
Join the club & save £££ - Thousands saved over the years!
DJI Zenmuse H30T Drone Payload

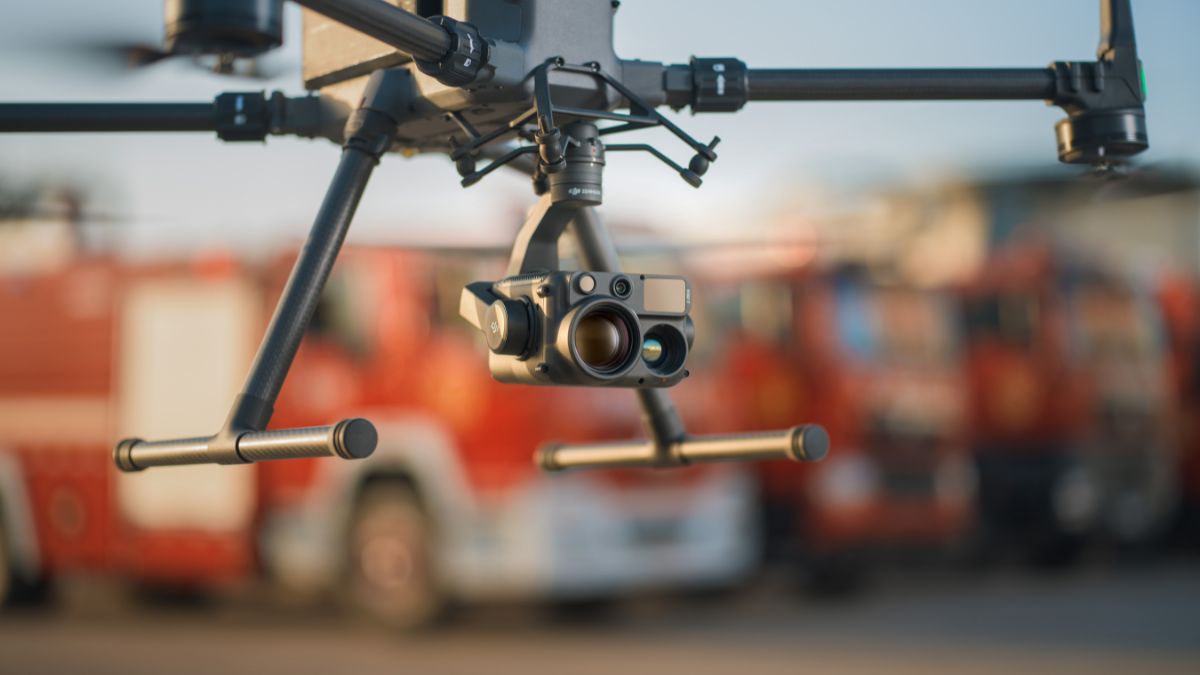

DJI's flagship multi-sensor payload, combining a 48MP wide camera, a 34x optical zoom camera, a 1280×1024 thermal sensor, a 3,000m laser rangefinder, and an NIR auxiliary light in one gimbal. Built for inspection, security, and public safety work spanning day and night.
An Adaptable, Multi-Sensor Payload
- See detail at range with a laser rangefinder reaching 3,000m, 2.5x further than the H20 Series it replaces.
- Measure temperature up to 1,600°C with the optional infrared density filter fitted, or up to 600°C as standard.
- Read fine thermal detail at 1280×1024 resolution, four times sharper than the H20T, with 32x digital zoom.
- Work through the night with both cameras supporting Night Scene Mode and an NIR auxiliary light for illumination.

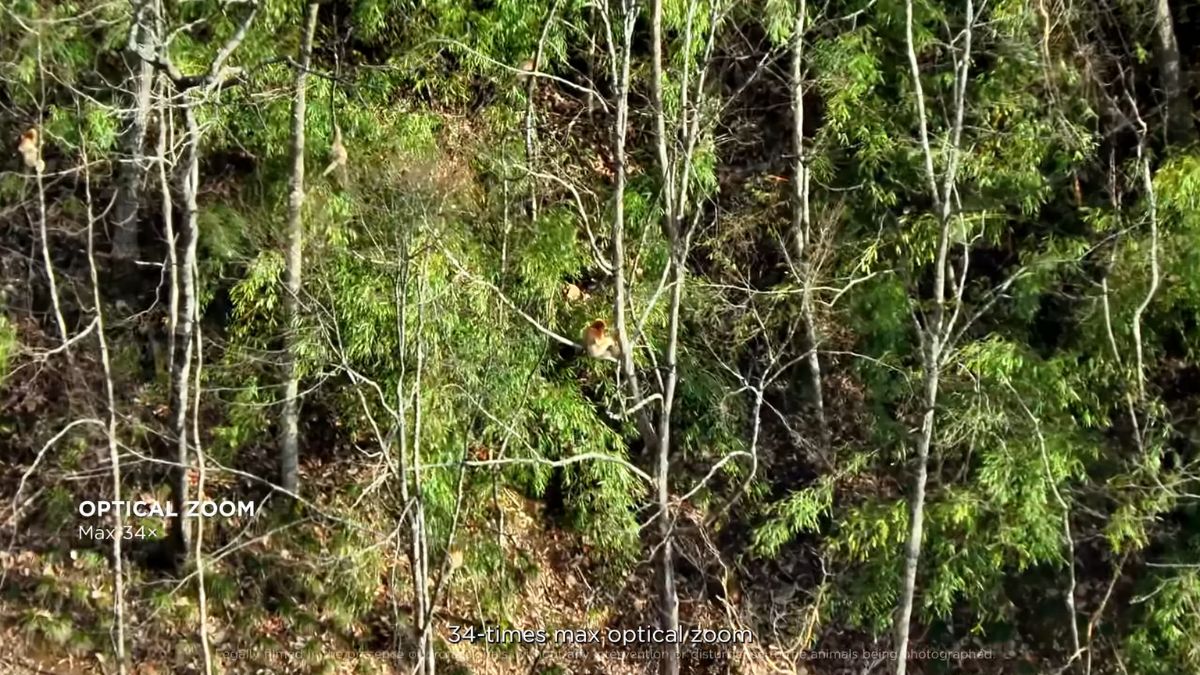

- Zoom in from a safe distance with 34x optical and up to 400x digital zoom on the dedicated zoom camera.

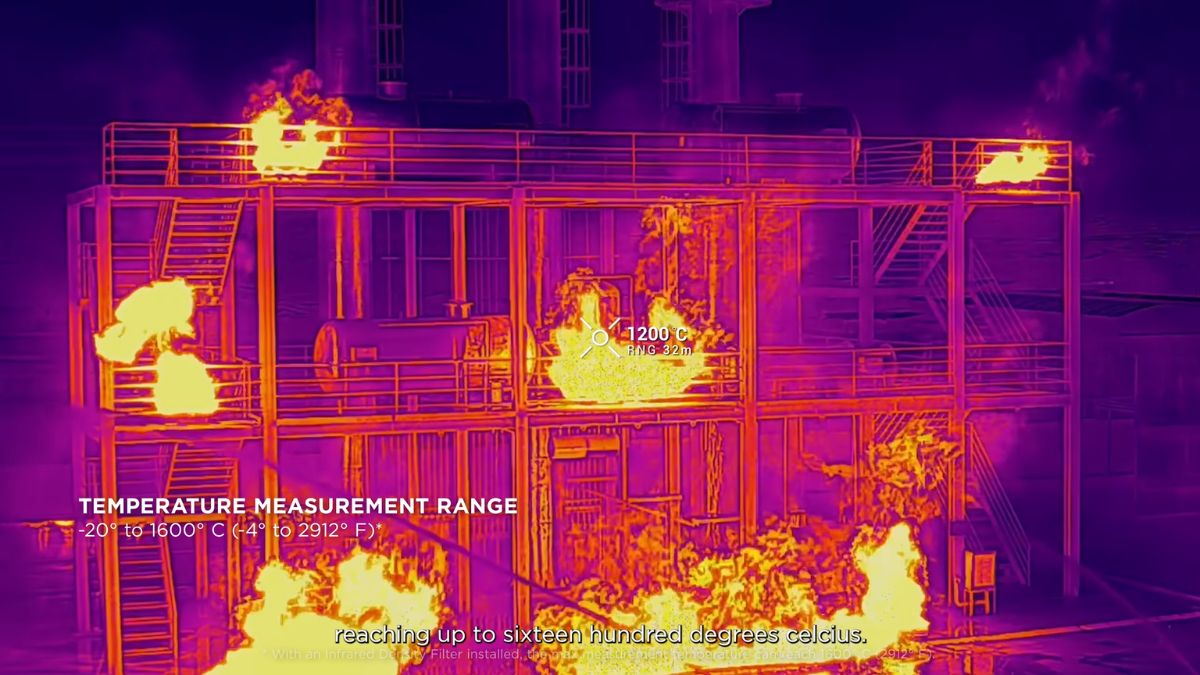

Improved Thermal Imaging
The 1280×1024 thermal sensor resolves four times the detail of the H20T, backed by two gain modes. High Gain measures -20°C to 150°C (extending to -20°C to 450°C with the optional infrared density filter), ideal for typical inspection work. Low Gain measures 0°C to 600°C (extending to 0°C to 1600°C with the filter), suited to high-heat scenarios like wildfire monitoring or industrial inspection. Link Zoom keeps the RGB and thermal cameras scaled together, so both views stay aligned on the same subject as you zoom.
Wide and Zoom Camera System
The 48MP wide camera (1/1.3-inch sensor, 82.1° DFOV, 24mm equivalent) handles general capture, while the 40MP zoom camera (1/1.8-inch sensor) reaches 34x optical zoom with image stabilisation that reduces shake at telephoto range. Both record 4K at 30fps and support Night Scene Mode down to 5fps for maximum low-light sensitivity.

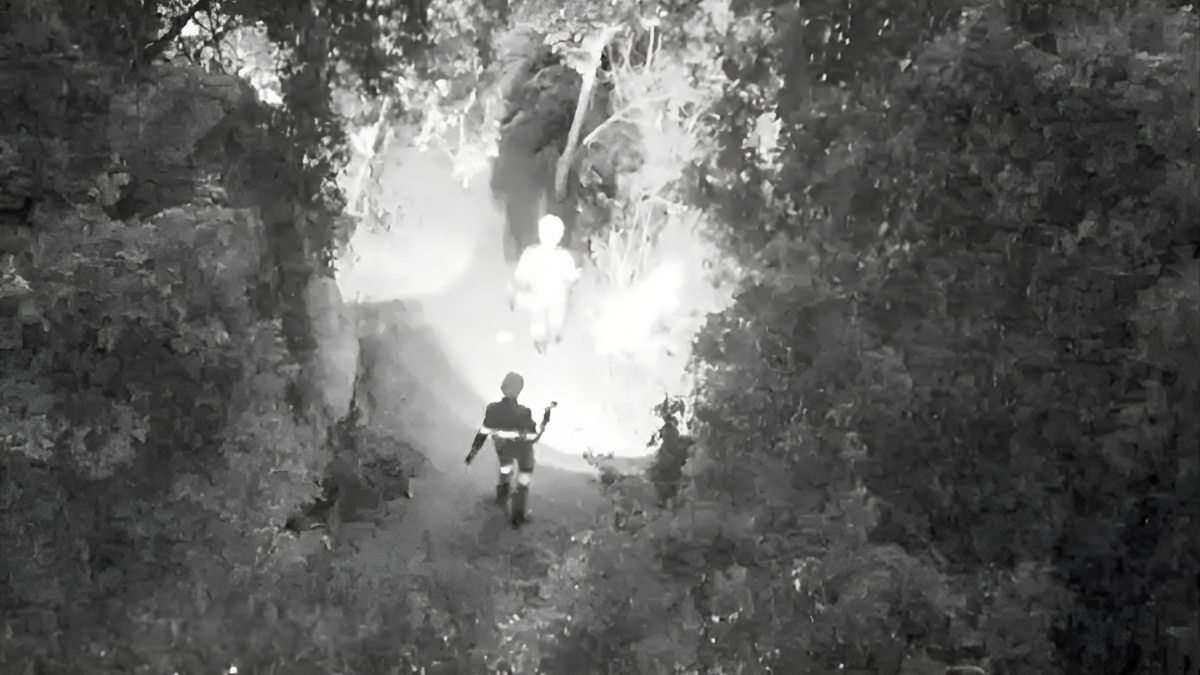

Night Operation
NIR auxiliary light improves centre-frame illumination as the camera view shifts to black and white, or switch to Full-Colour Mode for a brighter view with the IR filter removed. A laser rangefinder assists focus automatically in low light, with the laser spot visible in the black-and-white view when Night Scene Mode and IR Light are both active.

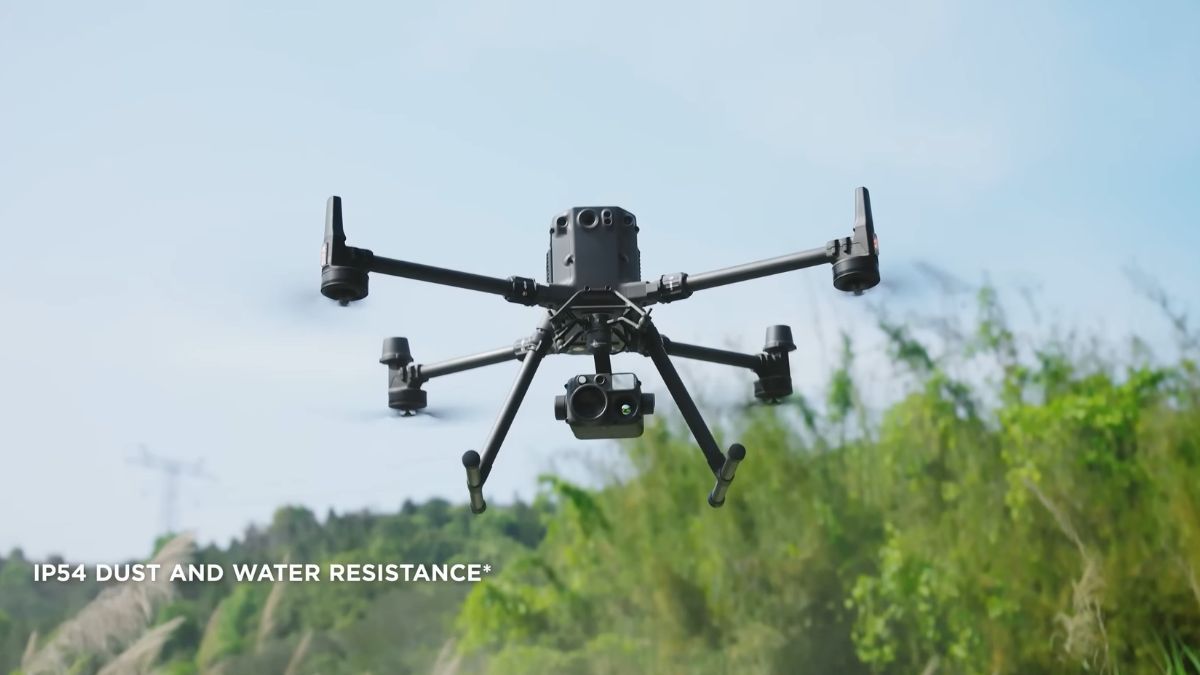

Weatherproof and Built for the Field
Rated IP54 for dust and light rain resistance, with an operating range of -20°C to 50°C. Detachable via DJI SKYPORT mounting for quick payload changes between missions.
Frequently Asked Questions
Does the H30T work with the Matrice 400?
Yes. It's compatible with the Matrice 400, Matrice 350 RTK, and Matrice 300 RTK
What's the difference between the H30T and the H20T?
The H30T roughly quadruples thermal resolution to 1280×1024, extends laser rangefinder distance to 3,000m (2.5x further), and adds a wider temperature measurement range with the optional infrared density filter.
What temperature range can the thermal camera measure?
-20°C to 150°C in High Gain mode, or 0°C to 600°C in Low Gain mode. Fitting the optional infrared density filter extends this to -20°C to 450°C (High Gain) or 0°C to 1600°C (Low Gain).
Does DJI Care Enterprise come included?
No, not as standard on this listing. DJI Care Enterprise (Basic) is available separately and entitles you to two replacements within the first year for a fee. Our team can talk you through current pricing.
What warranty comes with the H30T?
| Component | Warranty |
|---|---|
| Gimbal | 24 Months |
| Camera | 24 Months |
| Storage Case | 6 Months |
| Zenmuse H30T Infrared Density Filter | 6 Months |
Can I get this on finance?
Ltd companies can access iwocaPay financing, and individual buyers can use Klarna or Clearpay at checkout.
What's Included Beyond the Hardware?
Drone Safe Register Professional (1 Year) worth £238.79.
What's in the Box?
1 x Zenmuse H30T
1 x Lens Cap
1 x microSD Card (64GB)
1 x Storage Case
1 x Lens Cleaning Cloth
Full Specifications
General
| Spec | Value |
|---|---|
| Dimensions | 170 × 145 × 165 mm (L×W×H) |
| Weight | 920 ±5 g |
| Power | 28 W |
| Ingress Protection | IP54 |
| Supported Aircraft | Matrice 400, Matrice 350 RTK, Matrice 300 RTK (requires DJI RC Plus) |
| Operating Temperature | -20° to 50°C |
| Storage Temperature | -20° to 60°C |
Gimbal
| Spec | Value |
|---|---|
| Stabilisation | 3-axis (tilt, roll, pan) |
| Mounting | Detachable DJI SKYPORT |
| Controllable Range | Tilt: -120° to +60°, Pan: ±320° |
| Operation Mode | Follow / Free / Re-center |
Zoom Camera
| Spec | Value |
|---|---|
| Sensor | 1/1.8-inch CMOS, 40MP |
| Focal Length | 7.1-172mm (33.4-809.3mm equivalent) |
| Aperture | f/1.6-f/5.2 |
| Optical Zoom | 34x |
| Max Digital Zoom | 400x |
| Video Resolution | 3840×2160@30fps |
| ISO Range | 100-25,600 (Single Shot), 100-819,200 (Night Scene) |
Wide-Angle Camera
| Spec | Value |
|---|---|
| Sensor | 1/1.3-inch CMOS, 48MP |
| Focal Length | 6.72mm (24mm equivalent) |
| Aperture | f/1.7 |
| DFOV | 82.1° |
| Video Resolution | 3840×2160@30fps |
| ISO Range | 100-25,600 (Single Shot), 100-409,600 (Night Scene) |
Infrared Thermal Camera
| Spec | Value |
|---|---|
| Thermal Imager | Uncooled VOx Microbolometer |
| Resolution | 1280×1024@30fps |
| Digital Zoom | 32x |
| Pixel Pitch | 12μm |
| Spectral Band | 8-14μm |
| Temperature Range (High Gain) | -20° to 150°C, or -20° to 450°C with Infrared Density Filter |
| Temperature Range (Low Gain) | 0° to 600°C, or 0° to 1600°C with Infrared Density Filter |
| Palette Options | White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron |
Laser Rangefinder
| Spec | Value |
|---|---|
| Wavelength | 905nm |
| Measurement Range | 3-3000m |
| Measurement Accuracy | ≤500m: ±(0.2m + distance×0.15%); >500m: ±1.0m |
| Safety Class | Class 1 |
NIR Auxiliary Light
| Spec | Value |
|---|---|
| Wavelength | 850nm |
| FOV | 4.6° ±0.6° (Round) |
| Illumination Range | Approx. 8m diameter circle at 100m distance |
Data Storage
| Spec | Value |
|---|---|
| Supported microSD | U3/Class10/V30 or above |
| File System | exFAT |
Post-Processing Software
| Spec | Value |
|---|---|
| Mapping Software | DJI Terra, DJI FlightHub 2 |
| Thermal Analysis | DJI Thermal Analysis Tool 3 |
