PSDK Mounting Bracket
SKU: CP.EN.00000378.01 Material Code: DJIEPSDKMBRAKT Brand: DJI
Includes VAT · pay in 3 from £8.33 with Klarna
Free Next Working Day Delivery
Order within 04 hrs 44 mins for delivery by Thursday, 27th August (UK Mainland)
Free collection from our Chichester Experience Centre
Pay Safely & Securely With
VIP Membership
Join the club & save £££ - Thousands saved over the years!

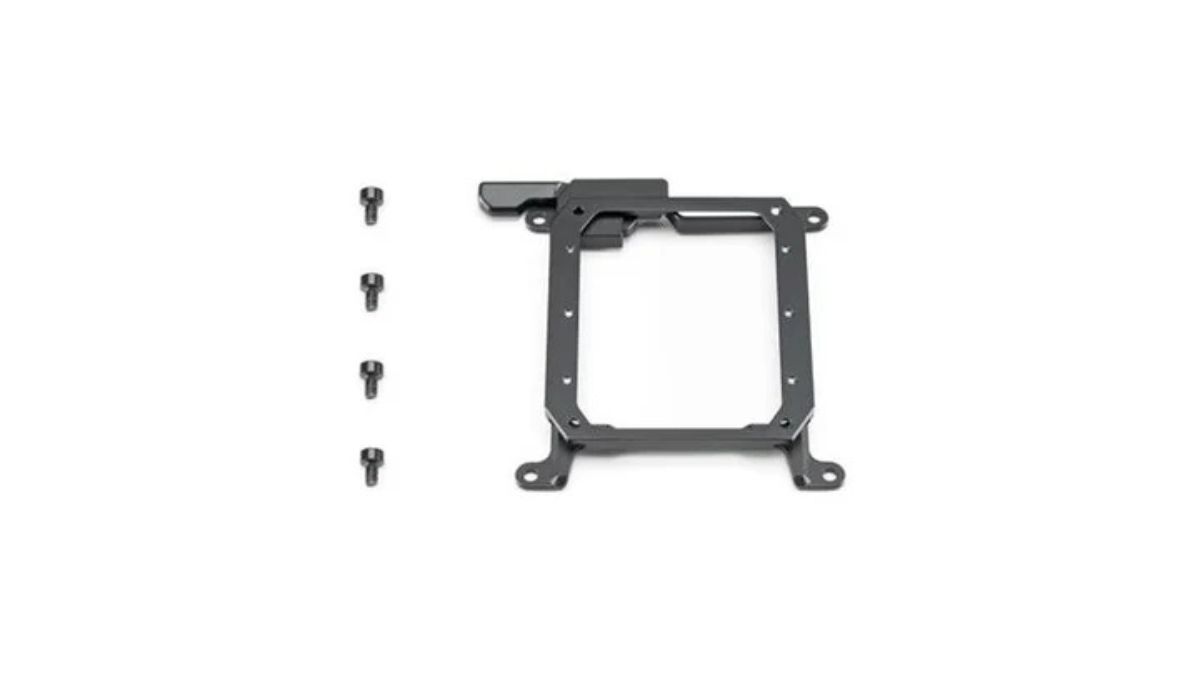

DJI PSDK Mounting Bracket
The mounting hardware that lets a Payload SDK-developed custom sensor attach securely to the Matrice 30 Series airframe, with quick-release for swapping between different PSDK payloads on the same aircraft.
How It Works
Two parts make up the bracket: a fixed bracket that attaches to the flight platform, and a payload bracket fitted to the PSDK payload itself. Dual slide rails let the payload lock in place with a simple push, and release with a single button press, so swapping between different custom sensors on the same aircraft takes seconds rather than a full re-fit.
Specifications
| Spec | Value |
|---|---|
| Weight | 16.5g (including screws) |
| Dimensions | 79.6 × 79.3 × 7.9mm |
| Material | Aluminium alloy |
| Compatible aircraft | DJI Matrice 30, Matrice 30T |
What's in the Box
1 x Fixed Bracket
1 x Payload Bracket
6 x Screw A (M1.6)
4 x Screw B (M2.0)
4 x Screw C (M3.0)
Wears Over Time
The bracket is a mechanical, moving part, and DJI notes it will wear with long-term use. Inspect it periodically and replace it once wear is visible, rather than waiting for a payload to come loose mid-flight.
Frequently Asked Questions
Does this work with the Matrice 4 Series or Matrice 400?
No, this bracket is specific to the Matrice 30 and Matrice 30T. It doesn't fit any other Matrice platform.
Does this include a PSDK payload?
No, this is the mounting hardware only. It's designed to work alongside a Payload SDK-developed custom payload, either your own or a third-party sensor, connected via the appropriate Skyport, X-Port, or E-Port adapter.
How often should I replace it?
No fixed interval is published. Inspect it regularly for wear, since it's a load-bearing mechanical part, and replace it once wear becomes visible rather than continuing to use a worn bracket.
Can I swap between multiple PSDK payloads on the same aircraft?
Yes, that's the core purpose of the design. The button-release mechanism is built for quick swaps between different payload brackets.
What warranty comes with it?
As an official DJI retailer, we offer 24 months warranty generally, though brackets and mechanical wear parts are sometimes treated differently to electronic components. Our team can confirm current terms before you buy.
Can I get this on finance?
Ltd companies can access iwocaPay financing, and individual buyers can use Klarna or Clearpay at checkout.
Why Buy From Drone Safe Store
Every PSDK Mounting Bracket ships from UK stock. If you're integrating a custom payload onto a Matrice 30, call us and we'll confirm you've got the right adapter and bracket combination before you order.
